lyc20009
技術交流
級別: 探索解密
精華主題: 0
發帖數量: 16 個
工控威望: 104 點
下載積分: 481 分
在線時間: 25(小時)
注冊時間: 2010-04-15
最后登錄: 2014-07-28
查看lyc20009的 主題 / 回貼
樓主  發表于: 2011-10-16 15:42
數據設置型1和2原點回歸的方式是咋執行的,請各位高手解答下,手冊上沒有看明白。
手冊上是這樣的寫的:(1)數據設置型1原點回歸 原點回歸命令執行時的指令位置為原點。
(2)數據設置型2原點回歸 執行了原點回歸命令的點擊的實際位置為原點。

請各位高手詳細解答下謝謝!
zhang850412
有可以拔13570997576 張工
級別: 工控俠客
精華主題: 0
發帖數量: 256 個
工控威望: 2209 點
下載積分: 13860 分
在線時間: 1090(小時)
注冊時間: 2009-07-19
最后登錄: 2025-04-25
查看zhang850412的 主題 / 回貼
1樓  發表于: 2011-10-16 22:53
目前也在研究運動模塊
kf123
沒有最好,只有更好。
級別: 論壇先鋒
精華主題: 0
發帖數量: 615 個
工控威望: 1560 點
下載積分: 3562 分
在線時間: 184(小時)
注冊時間: 2011-06-07
最后登錄: 2025-04-15
查看kf123的 主題 / 回貼
2樓  發表于: 2011-10-16 23:25
這還需要設計 那里是原點
春有百花秋有月,夏有涼風冬有雪。若無閑事掛心頭,便是人間好時節
lyc20009
技術交流
級別: 探索解密
精華主題: 0
發帖數量: 16 個
工控威望: 104 點
下載積分: 481 分
在線時間: 25(小時)
注冊時間: 2010-04-15
最后登錄: 2014-07-28
查看lyc20009的 主題 / 回貼
3樓  發表于: 2011-10-17 08:53
數據設置型1指令位置為原點,數據設置型2電機的實際位置為原點應怎樣理解,請各位高手指點下。
lyc20009
技術交流
級別: 探索解密
精華主題: 0
發帖數量: 16 個
工控威望: 104 點
下載積分: 481 分
在線時間: 25(小時)
注冊時間: 2010-04-15
最后登錄: 2014-07-28
查看lyc20009的 主題 / 回貼
4樓  發表于: 2011-10-17 13:20
自己頂一下
lyc20009
技術交流
級別: 探索解密
精華主題: 0
發帖數量: 16 個
工控威望: 104 點
下載積分: 481 分
在線時間: 25(小時)
注冊時間: 2010-04-15
最后登錄: 2014-07-28
查看lyc20009的 主題 / 回貼
5樓  發表于: 2011-10-17 16:32
請哪位仁兄給力解答下,謝謝!
jonnyhsieh
系統整合
級別: VIP會員
精華主題: 0
發帖數量: 564 個
工控威望: 1150 點
下載積分: 721 分
在線時間: 730(小時)
注冊時間: 2010-06-03
最后登錄: 2025-04-21
查看jonnyhsieh的 主題 / 回貼
6樓  發表于: 2011-10-18 00:27

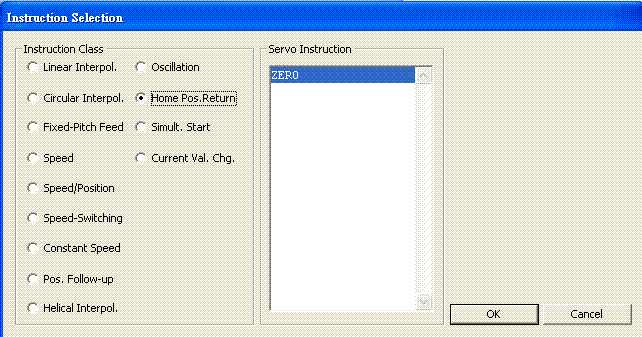

圖片:
TEST PROGRAM1
jonnyhsieh
系統整合
級別: VIP會員
精華主題: 0
發帖數量: 564 個
工控威望: 1150 點
下載積分: 721 分
在線時間: 730(小時)
注冊時間: 2010-06-03
最后登錄: 2025-04-21
查看jonnyhsieh的 主題 / 回貼
7樓  發表于: 2011-10-18 00:29
圖片:
圖片:
TEST PROGRAM2
jonnyhsieh
系統整合
級別: VIP會員
精華主題: 0
發帖數量: 564 個
工控威望: 1150 點
下載積分: 721 分
在線時間: 730(小時)
注冊時間: 2010-06-03
最后登錄: 2025-04-21
查看jonnyhsieh的 主題 / 回貼
8樓  發表于: 2011-10-18 00:35
[ZERO] Home Position Return

[Control Details]


(1) Use home position return at power on and other times where confirmation that axes are at the machine home position is required.

(2) The following six methods of home position return are available. Select a method according to the system configuration and application.

Home position return method Contents Applications
Proximity dog type Proximity dog type 1 · Home position is zero point of servomotor.
· When the proximity dog is ON, it cannot be started.
· It is used in the system which can surely pass a zero point from the home position return start to proximity dog ON to OFF.
Proximity dog type 2 · Home position is zero point of servomotor.
· When the proximity dog is ON, it can be started. · This method is valid when the stroke range is short and "proximity dog type 1" cannot be used.
Count type Count type 1 · Home position is zero point of servomotor. · It is used in the system which can surely pass a zero point from the home position return start to point of travel distance set as "travel value after proximity dog ON".
Count type 2 · Zero point is not used in the home position return. · This method is used when the proximity dog is near the stroke end and the stroke range is narrow.
Count type 3 · Home position is zero point of servomotor. · This method is valid when the stroke range is short and "count type 1" cannot be used.
Data set type Data set type 1 · Home position is zero point of servomotor.  · External input signals such as dog signal are not set in the absolute position system.
· This method is valid for the data set independent of a deviation counter value.

Data set type 2 · Home position is real position of servomotor.  · External input signals such as dog signal are not set in the absolute position system.
Dog cradle type · Home position is zero point of servomotor immediately after the proximity dog signal ON.  · It is easy to set the position of proximity dog, because the proximity dog is set near the position made to the home position.
Stopper type Stopper type 1 · Home position is position which stopped the machine by the stopper.
· The proximity dog is used.
· This method is valid to improve home position accuracy in order to make the home position for the position which stopped the machine by the stopper.
Stopper type 2 · Home position is position which stopped the machine by the stopper.
· The proximity dog is not used.

Limit switch combined type · Home position is zero point of servomotor.
· Proximity dog is not used.
· External limit switch is surely used.
· It is used in the system that the proximity dog signal cannot be used and only external limit switch can be used.
gcbplc
QQ3130569178 PLC編程、登錄口令修改刪除、調試
級別: 工控俠客
精華主題: 0
發帖數量: 338 個
工控威望: 3229 點
下載積分: 12156 分
在線時間: 406(小時)
注冊時間: 2011-06-23
最后登錄: 2025-04-23
查看gcbplc的 主題 / 回貼
9樓  發表于: 2011-10-18 08:50
樓主能否發一份Q173CPU編程案例給我也學習學習 ,非常感謝!
時間都去哪了?!!!
QQ3130569178 PLC編程、登錄口令修改刪除、調試、備份 ;FB塊口令解除
